3 Axles Factory Supplier Stainless Steel Tank Trailer /Transport Oil Fuel Tanker Trailers
----Product parameter
Detailed specification | ||
| PARAMETER | Dimension(mm) | L*w*h: 10500*2500*3990(mm) |
| Axle space(mm) | 5100mm+1310mm+1310mm | |
| Tare weight(kg) | 7240kg | |
| Loading capacity | 32000L | |
| OEM | Landing gear | Two speed manual operation type with sand shoe |
| Kingpin | 2" bolted type | |
| Brake system | Dual line pneumatic brake system. | |
| Brake chamber | Type 30/30 spring brake system on all axles | |
| Suspension | spring suspension or air suspension | |
| Axle | RJST or FUWA axle, 13 ton capacity/set,3pcs | |
| Tire | 12R22.5, 12pcs | |
| Rim | 9.0-22.5 12 pcs | |
| Tool box | 0.8 meters toolbox,one pcs | |
| Spare tire carrier | two pcs | |
| TANK SPECS | Compartment | One or according to your requirment |
| Tank material | Carbon steel, thickness 4 mm | |
| Bulkhead | Thickness is 5mm | |
| Baffle | Thickness is 4mm | |
| Shape of tank | Ellipse (double "d") | |
| OTHERS | Fire extinguisher | 2 pcs |
| Manhole | One manhole | |
| Discharge hose | 6m | |
| Hose carries | 2 pcs | |
| Painting | Sand blasting before painting;one coats of primer, anti corrosion two coat of finish painting;colour advised by client | |
----Product advantages
1.Scientific design and quality assurance:The design in performed in accordance with the actual parameters of the tractor and trailer in the design process,ensuring to reach best level of whole vehicle transport performance.
2.Characteristic overall camber structure of longitudinal beams ensures lifetime downward bending-free of crossbeams:As per the mechanical analysis,the unique overall camber structure of the longitudinal beam is adopted to ensure lifetime downward bending-free of crossbeams and effective save fuel consumption under same bearing load and build maximum economic value for users.
3.Quality steel material and OEM parts ensure quality and condition of products.
4.Characteristic suspension system eliminates uneven and abnormal wear of tires.
5.Special steel and characteristic railing structure feature deformation-free and lighter dead weight.
6.Welding procedure:Frame and top-bottom welding are all compressed tightly with pneumatic-hydraulic clamping,automatic transmission and other large tools welding,effectively control welding deformation and guarantee the smoothness and technical requirements.The turnover model makes the welding strength;The electric tilting system controls the manufacture process spare part distortion.Mixes gas welding ensures the welded joint quality.
7.Painting craft:Using the baking varnish craft,primer twice,top coat twice and detection is made strictly according to the national standard for film thickness to guarantee the paint quality and brightness.
-----The main components of the warranty period(See table)
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| MAIN FRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS | |
| SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | |||
| KING PIN | 1 YEAR | WHEEL HUB | 3 MONTHS | |||
| BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | |||
| ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | |||
| BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS | |
| BRKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | |||
| AIR RESERVOIR | 6 MONTHS | |||||
| ITEM NAME | WARRANTY | |||||
| OTHERS | LEAF SPRING | 3 MONTHS | ||||
| BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | |||||
| EMERGENCY RELAY VALVE | 3 MONTHS | |||||
| BRAKE SHOE | 3 MONTHS | |||||
| RELAY VALVE | 3 MONTHS | |||||
-----Packaging & Delivery
Packaging Details: | Nude package with wax, container or RORO for tank semi trailer, it also can as the customer requirements. |
| Delivery Detail: | 20 days after deposit or contracting |

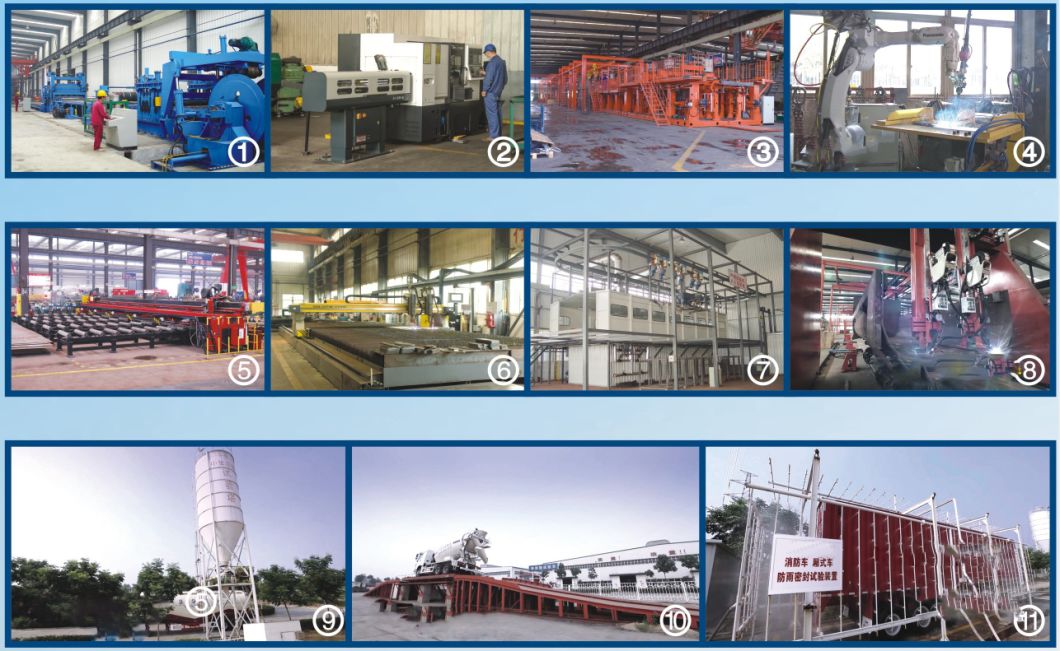

----Factory Show:
